PCB Depanelizer With High Speed Steel Blades For LED Strip Cutting
PCB Depanelizer Details

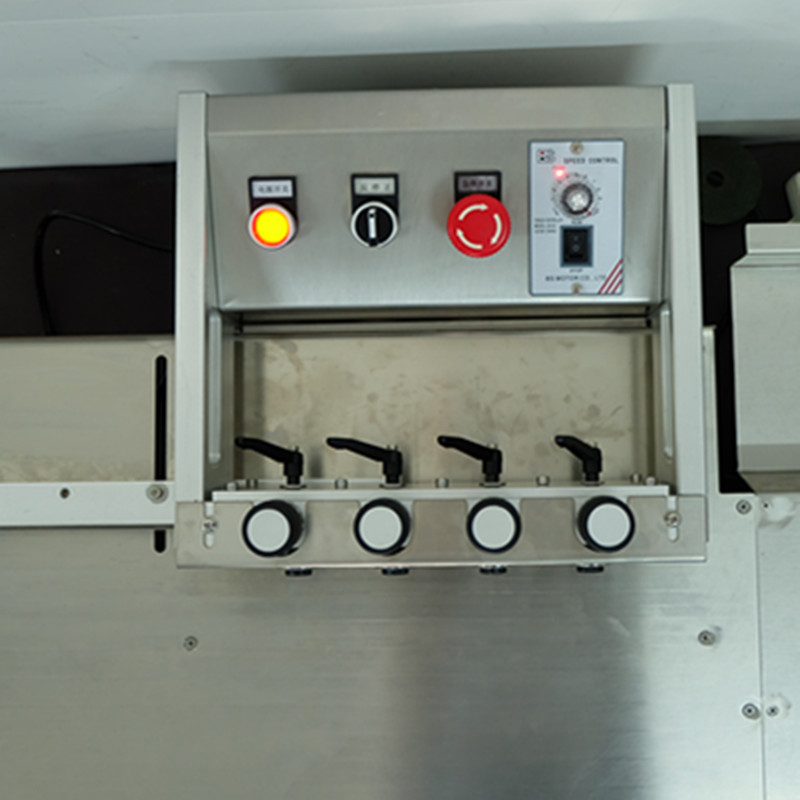

The X,Y axis is of free adjustment.You can adjust the angle of the blade and the gap between upper and lower knives to make a accurate cutting for a long time.With 4 knives for the upper and lower blade,its cutting process is divided in to 4 parts.So that the machine cuts boards without burrs and deformation under little stress.
Use scope:
Machine size | 390mm×400mm×330mm |
Blade size | Round blade ϕ60mm×12mm×3mm |
Platform size | 1200(2400)mm×426mm×200mm |
Cutting thickness | 1/3 thickness of panel |
Power | 90W |
Air pressure | None |
Voltage | 220V/110V |
Cutting speed | 1mm-200mm/s |
Cutting width | 4mm-100mm |
Cutting length | 100mm-no limited |
Application | LED light bar,Aluminum board,FR4 board |
Multicut PCB v-cut separator details
1.Coutrolled by microcomputer program, it can cut board accurately with no error.
2.This machine applies unique multi sections cutting, the cutting is to be finished
by 6 pieces round blade.
3.Precise adjustment of up and down blade.Adjustable blade moving speed : 200mm/s. As per customers' need, certain speed can be set
4.Operation platform can be adjustable higher and lower between 0 and 50mm
5. Working process is pretty smooth, due multi sections cutting.
6.There won`t be any deviation when cutting along the v-cut slot, even the v-cut
slot is shallow.
7.Pre-set the cutting start and end point to well control the cutting length
|
|
