    Aluminium PCB Separator LCD Display For PCB Depaneling Parameters Set

    Ask Lasest Price
    Brand Name : YES
    Model Number : YES-1
    Certification : CE ISO RHS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 1 days after payment received
    • Product Details
    • Company Profile

    Aluminium PCB Separator LCD Display For PCB Depaneling Parameters Set


    Aluminium PCB Separator LCD Display For PCB Depaneling Parameters Set​


    Our PCB Depaneling Machine MAESTRO 4M YES-1 Operate Easily And Safely:

    Safe operation equipped with Electric eye safe sensor to keep your workers safety

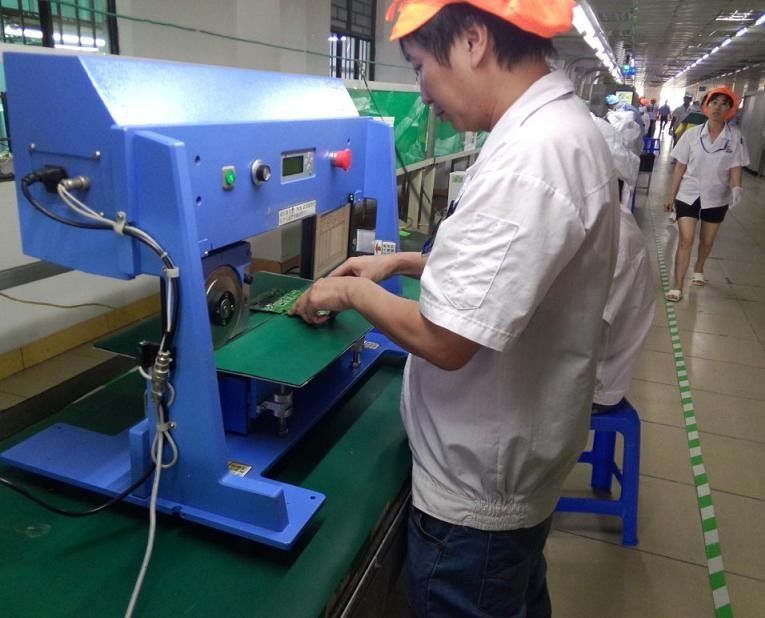

    The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.


    The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.

    We are China Professional PCB Separator Manufacturer over ten years experience,you are welcome to visit our PCB Depaneler Warehouse


    Lowest Stress PCB Separator YES-1 Main Details introduction:


    1. With completely independent development and controlled by micro-computer process, the machine is very accurate and stable.


    2. It can cut a single board within the length from 0 to500mm off with a cut.


    3. The feeding speed is adjustable with 500mm/s and 300mm/s. If the speed is fast enough, the quality is improved for the board is cut without burrs and rough selvedge.


    4. The feed distance of the knife wheel is from 0 to 500mm(the tool length can be customized ) . The height of the knife wheel is fine-tuning from 0 to 2mm,so that it is suitable for PCB of various kinds of thickness and the depth of V-CUT groove. The height of work station is regulable from 0 to 50mm.


    5. The forward and stop point can be set according to the plate length when feeding, the stop point for manual setting.


    6. The tailgate depth range: unlimited. The largest plate cutting width: unlimited,the maximum cutting length: 500mm, the plate thickness: 0.25-3.5mm. The thickness between V groove: 0.25-2.0mm.


    Competitive Advantages:


    1. We specialize in automatic cutting machine for more than 10 years


    2. 3 years warranty


    3. Manufacturer price


    V Cut PCB Depaneling machine Technical:

    ModelYES-1
    Max. PCB singulation length460 or 600 mm(on request custom made)
    PCB singulation thickness0.6-3.5 mm
    PCB singulation feed rate100,200,300,500 mm/sec
    Blade motionupper circular blade moving automatically
    Blade motive power operating modemotor-driven
    Power supply110/220v
    PCB singulation machine size770*510*450mm
    PCB singulation machine weight55kg



    Customers FAQ About PCB Separator YES-1:

    1. Q:Do you have any certification for this machine?
    A:YES,We have CE ISO FCC ROHS etc.

    2. Q:What is warranty of the machine?
    A:1 year.

    3. Q:How do you pack the machine?
    A:We fix the machine on the plywood base with screws to ensure safe transportation.

    4. Q:What is life time of machine blades?
    A:About 6-12 months.

    5. Q:What is material of blades?
    A:Japan high speed steel SKH-9

    6. Q:Can the blades be sharpened?
    A:Yes, they could be re-sharpened for 2-3 times.

    7. Q:How do you offer oversea service?
    A:We could send engineer to do installation and training for client if needs.

    8. Q:Can we see your machine in our country?
    A:Yes, we would like to offer contact details of our clients who are using our machines.
