Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure

ShenZhen YES Electronics Machinery Co.,Ltd
Contact Now
    Buy cheap Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure from wholesalers

    Buy cheap Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure from wholesalers
    • Buy cheap Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure from wholesalers
    • Buy cheap Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure from wholesalers

    Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure

    Ask Lasest Price
    Brand Name : YES
    Model Number : YES-P
    Certification : CE ISO RHS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 1 days after payment received
    • Product Details
    • Company Profile

    Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure


    Stress Free Rigid PCB Depaneling Tool 0.5Mpa - 0.7Mpa Working Air Pressure​


    SMT small v-cut pcb separator machine


    1. Max. PCB depaneling length is unlimted


    2. Depaneling PCB without bending and tension stress


    3. Safety use, easy operation


    4. Depaneling process without vibrations


    PCB Assembly PCB Depaneler specifications:


    Max. PCB depaneling length unlimited


    PCB depaneling thickness 0.3-3.5mm


    Voltage and Power 110V/220V -- 10W


    Working air pressure 0.5-0.7Mpa


    PCB depaneling speed due to operator skilled level


    PCB depaneling machine size 780x500x620mm


    PCB depaneling machine weight 185Kg


    Pneumatic PCB Cutting Machine features:


    1. The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.


    2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.


    3. Depaneling process without vibrations.


    4. PCB depaneling control method is by pneumatic-driven and electromagnetic valve.


    5. PCB control operation is that operator stamps the foot pedal to depanel PCB.


    6. Highest components near the v groove of PCB can be up to 50mm.


    7. Gap for insertion of PCB can be easy to adjust.


    Pneumatic PCB Separator Advantage:


    1. YESP Pcb depanelizer original manufacturers, price concessions

    2. Day technical support services

    3. Limit the handling of complaints, half an hour back to customers

    4. Depanel Experts, the provision of professional PCB sub-programme

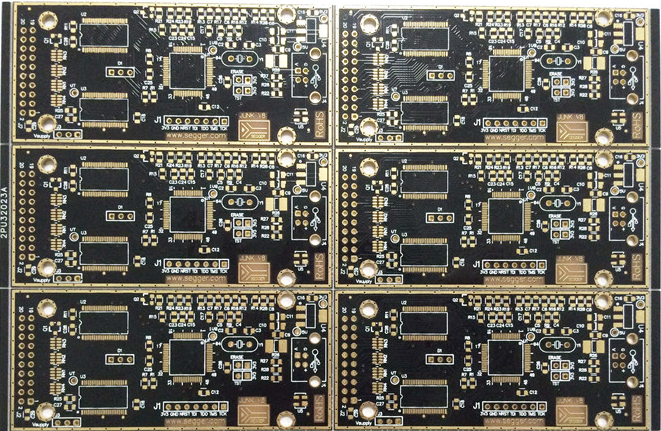

    YES-P V Cut PCB Separator PCB Apply


    LED Panel,Fiber Board,Aluminium Plate,Aluminium Substrate,Copper Substrate FR4,Glass Fiber Board

    Product Introduction


    pcb depanelizer

    pcb separator


    Customers FAQ About PCB Separator YES-P:


    1. Q:Do you have any certification for this machine?
    A:YES,We have CE ISO FCC ROHS etc.


    2. Q:What is warranty of the machine?
    A:1 year.


    3. Q:How do you pack the machine?
    A:We fix the machine on the plywood base with screws to ensure safe transportation.


    4. Q:What is life time of machine blades?
    A:About 6-12 months.


    5. Q:What is material of blades?
    A:Japan high speed steel SKH-9


    6. Q:Can the blades be sharpened?
    A:Yes, they could be re-sharpened for 2-3 times.


    7. Q:How do you offer oversea service?
    A:We could send engineer to do installation and training for client if needs.


    8. Q:Can we see your machine in our country?
    A:Yes, we would like to offer contact details of our clients who are using our machines.


    PCB Cutter service


    1. Engineers available to service machinery oversea

    Engineers are available to be sent to freign countries to do machinery training and offer technical support.


    2. Mature technique & forerunner to process makes high quality machinery

    As largest manufactory in South China, we have 12 years experience on machines.

    Our R&D team continuously upgrade the existing machines to meet the market development trend

    3.Effective customer service

    All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers


    4.One year warranty for the machines except accessories


    Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.

    We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
