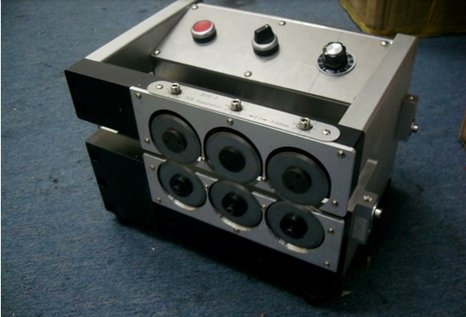

PCB Depaneling Tool With Six Circular Blades For PCB Separator Cutter
pcb cutting machine Usage:
Be dedicated to the separating of aluminum based light bar, high efficiency, long life, without deformation and burrs, greatly saving labor and improving company benefits.
led pcb depanelizer Technical parameters:
| Power | 220V 50HZ |
| Voltage | 40W |
| Cutting thickness | 0.5-3.0 mm |
| Maximum Cutting length | Unlimited |
| Machine Size | 300*230*220 mm |
| Whole Size | 800*370*220 mm (Feeding plate can be customized) |
| Weight: | About 36kg |
| Storage temperature | -20~50℃ |
| Working temperature | 10~35℃ |
| Blade material | SKD-11 high-speed steel material from Japan |
| Cutting Materials | aluminum based board, FR-4, glass fibre board and PCB, etc. |
| Feeding efficiency | 2.5 pcs in a minute (1200mm pcb with 10 pcs pcb boards) |
| Limit: | the distance between the parts on board and the microgroove should be above 1mm; the side width is unlimited |
Why Clients Buy Our PCB Separator Model YES-6
1. Currently, it is the only machine that can guarantee the aluminum plate without deformation after cutting .
2. With unique cutting method, the circuit board is cut by six
blades. It is a group composed of one upper and one lower blade,
and is also a cutting unit.
There are A, B, C, three groups. The whole cutting process is
divided into three stages from group A blade which cut 10% board
then to the group B blade knife cut through groove cutting by group
A to complete another 40% .the last 50% is cut by group C blade and
finishing.
because each cutting volume is small, the stress produced during
the cutting progress declined by more than 50% compared with the
traditional cut off at a time.
Thus the edge of the board and its surface are very smooth without
warping .
Customers FAQ About PCB Separator YES-6:
| 1. Q:What is warranty of the machine? A:1 year. |
| 2. Q:How do you offer oversea service? A:We could send engineer to do installation and training for client if needs |
| 3. Q:Can we see your machine in our country? A:Yes, we would like to offer contact details of our clients who are using our machines. |
| 4. Q:Can the blades be sharpened? A:Yes, they could be re-sharpened for 2-3 times. |
| 5. Q:Do you have any certification for this machine? A:YES,We have CE ISO FCC ROHS etc. |
| 6. Q:How do you pack the machine? A:We fix the machine on the plywood base with screws to ensure safe transportation. |
| 7. Q:What is material of blades? A:Japan high speed steel SKH-9 |
|
|
